Water and Gas Taps

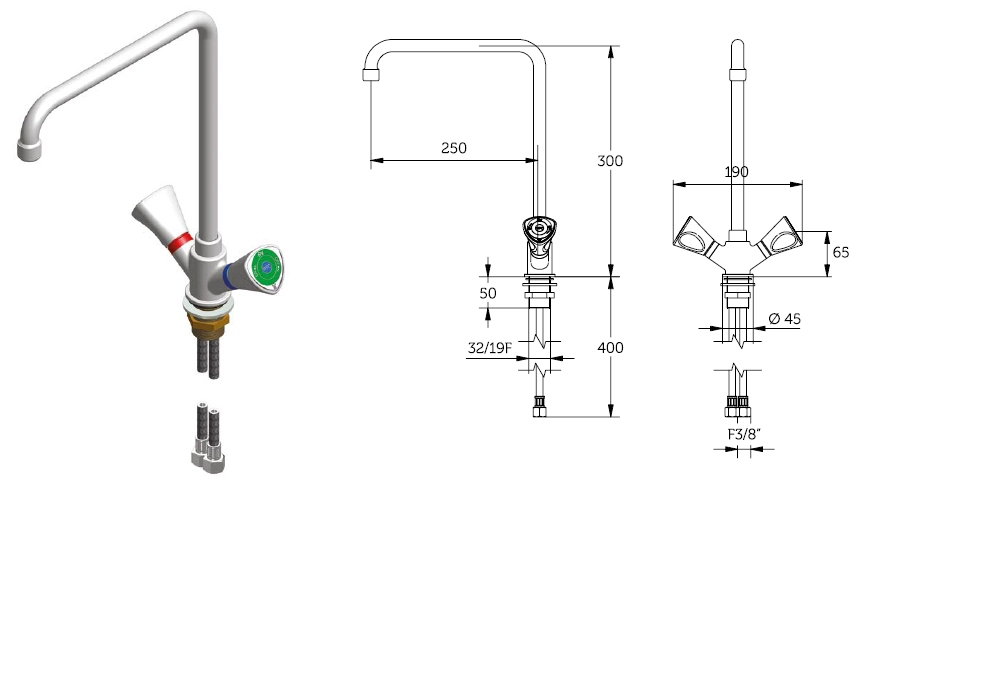

Double Laboratory Faucet Countertop

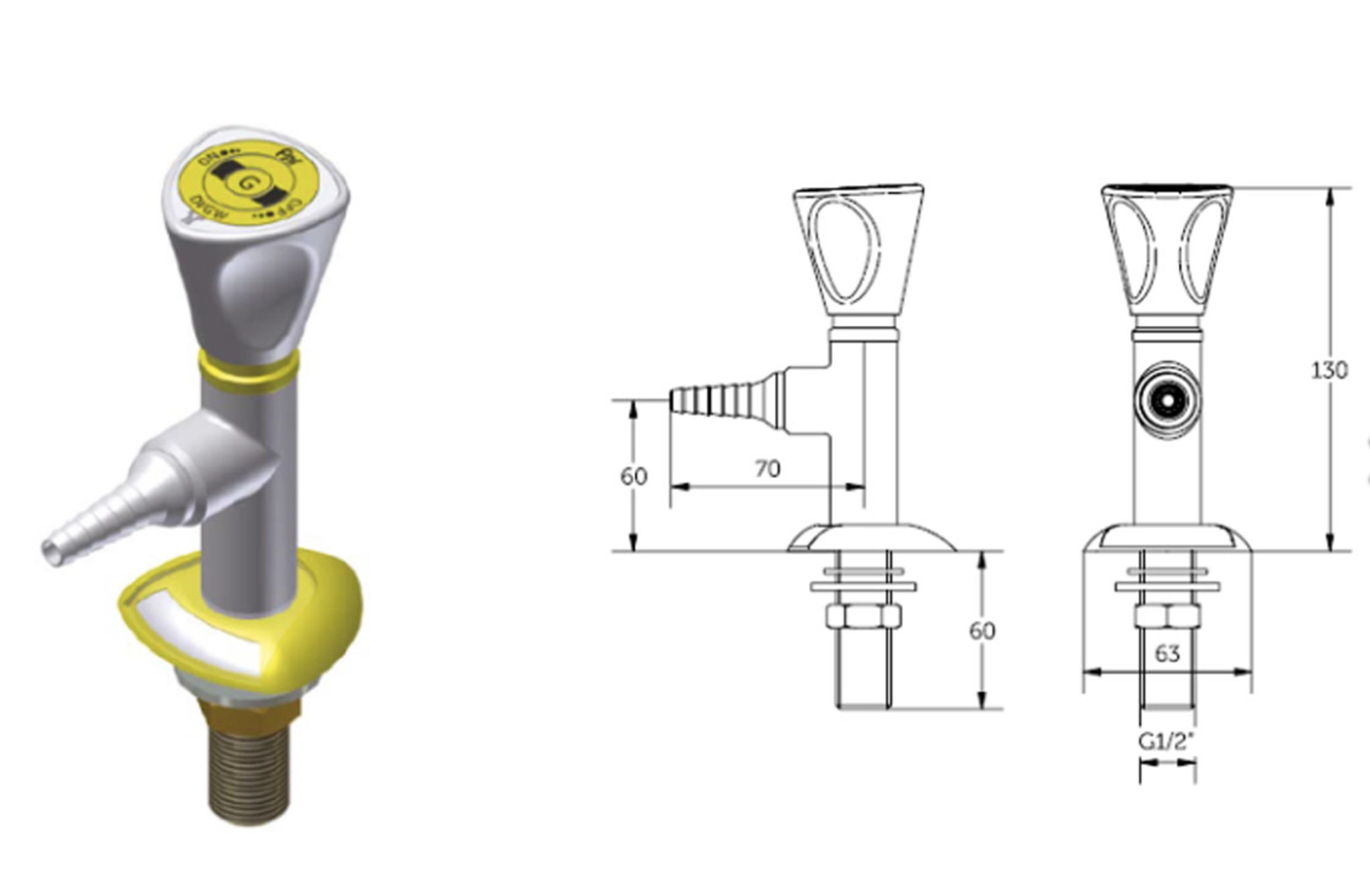

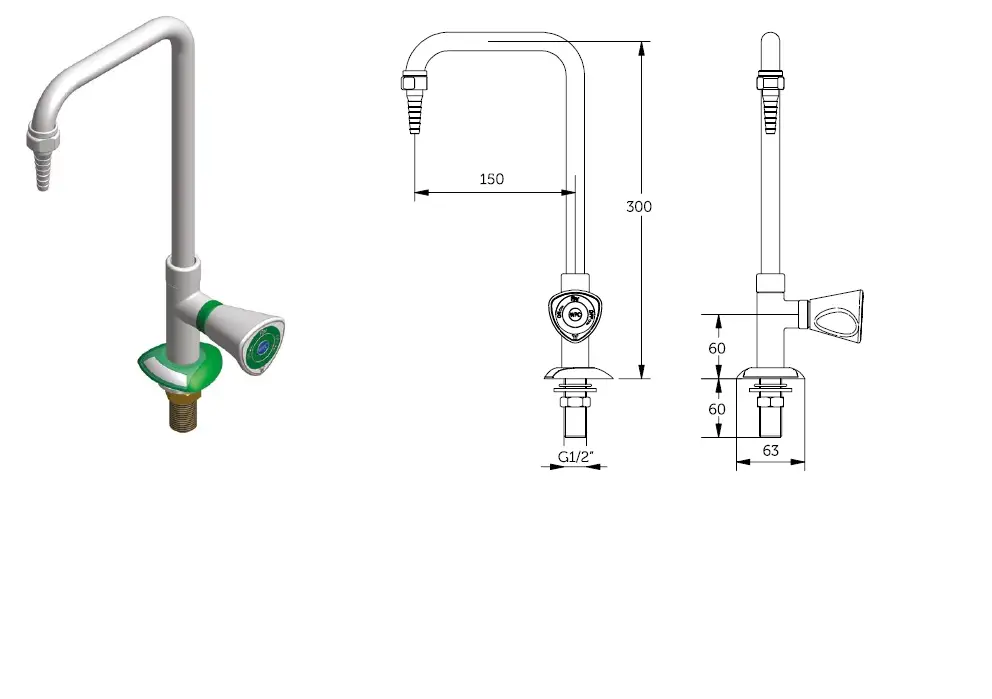

Laboratory Faucet Countertop Single
Bench-mounted laboratory use
Suitable for clean water or inert gas distribution in educational or industrial laboratories
Flow Rate: 26 L/min (at 3 bar pressure)
Test Pressure: 9 bar (air)
Max Operating Pressure: 10 bar
Control Type: Manual valve (quarter-turn or multi-turn options available)
High-resistance epoxy powder coating
Color Standard: RAL 7035 (light grey)
Chemical- and corrosion-resistant surface finish
Body: Solid brass, internally and externally protected
Handles: Polypropylene or ABS (optional color-coded)
Sealing Gasket: EPDM or FKM (depending on fluid compatibility)
Cartridge: Ceramic disc type for long life and smooth operation
Sealing Elements: EPDM, operating range 0°C to +70°C
Ceramic Cartridge: 0°C to +70°C (water applications)
Flexible braided hoses F3/8” or fixed G1/2” BSP male threaded tailpieces
Optional: Adapters for other standards upon request
EN 13792:2000 – Laboratory water and gas fittings
DIN 12898 / DIN 12918
ISO 228/1 – Pipe threads where pressure-tight joints are not made on the threads
11081.GMDSJ – Manual control lever
11081.GMDSC – 90° ceramic cartridge version
11081.GMDSNK – 17-micron electroless nickel chemical coating for high chemical resistance
Total Height: ~250 mm (customizable based on model)
Nozzle Reach: Standard 150–200 mm (adjustable or fixed)
2 Years (manufacturer warranty against production defects)

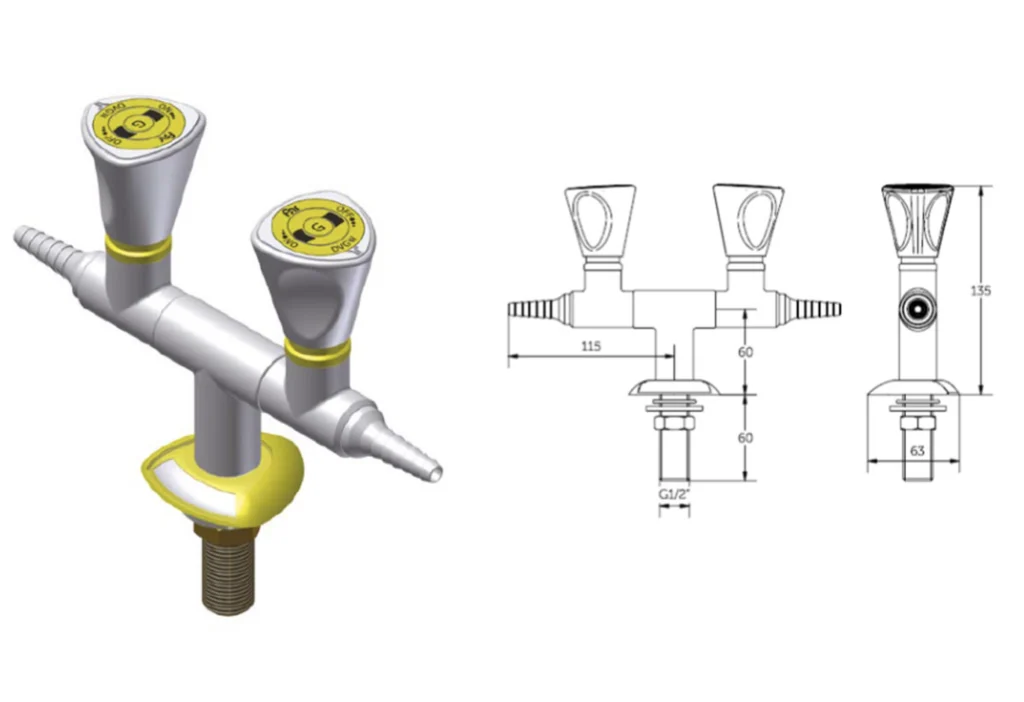

Double Gas Tap for Worktop / Bench
Laboratory Faucet Countertop Single
Bench-mounted laboratory use
Suitable for clean water or inert gas distribution in educational or industrial laboratories
Flow Rate: 26 L/min (at 3 bar pressure)
Test Pressure: 9 bar (air)
Max Operating Pressure: 10 bar
Control Type: Manual valve (quarter-turn or multi-turn options available)
High-resistance epoxy powder coating
Color Standard: RAL 7035 (light grey)
Chemical- and corrosion-resistant surface finish
Body: Solid brass, internally and externally protected
Handles: Polypropylene or ABS (optional color-coded)
Sealing Gasket: EPDM or FKM (depending on fluid compatibility)
Cartridge: Ceramic disc type for long life and smooth operation
Sealing Elements: EPDM, operating range 0°C to +70°C
Ceramic Cartridge: 0°C to +70°C (water applications)
Flexible braided hoses F3/8” or fixed G1/2” BSP male threaded tailpieces
Optional: Adapters for other standards upon request
EN 13792:2000 – Laboratory water and gas fittings
DIN 12898 / DIN 12918
ISO 228/1 – Pipe threads where pressure-tight joints are not made on the threads
11081.GMDSJ – Manual control lever
11081.GMDSC – 90° ceramic cartridge version
11081.GMDSNK – 17-micron electroless nickel chemical coating for high chemical resistance
Total Height: ~250 mm (customizable based on model)
Nozzle Reach: Standard 150–200 mm (adjustable or fixed)
2 Years (manufacturer warranty against production defects)
Laboratory taps are precision-engineered for safe, reliable, and ergonomic operation in laboratory conditions. Designed for high durability and chemical resistance, these taps deliver regulated gas or water flow through a manually controlled valve system. Available in single or dual-outlet configurations.
For professional laboratory environments – suitable for water, natural gas, or LPG supply at individual workstations or fume hoods.
Materials
| Component | Material |
|---|---|
| Tap Body | Forged brass, internally tin-lined or nickel-plated for corrosion resistance |
| Coating | Epoxy polyester powder coating (Standard: RAL 7035 or custom colors) |
| Handle | Chemical-resistant polypropylene or ABS with color-coded identification |
| Sealing Gasket | EPDM for water / FKM or NBR for gas |
| Nozzle/Outlet | Serrated hose nozzle or G-threaded (ISO 228/1) outlet |
Functional Characteristics
| Feature | Specification |
|---|---|
| Flow Control | Quarter-turn or progressive valve with ceramic or rubber headwork |
| Handle Rotation | 90° or 360° (depending on model) |
| Maximum Operating Pressure | 10 bar for gas, up to 16 bar for water |
| Test Pressure | 1.5× maximum working pressure |
| Flow Rate (Water Tap) | Approx. 20–26 L/min @ 3 bar |
| Operating Temperature Range | 0°C to 70°C |
| Installation Hole Diameter | 25–35 mm |
| Inlet Connection | Flexible hose G3/8” or G1/2” |
