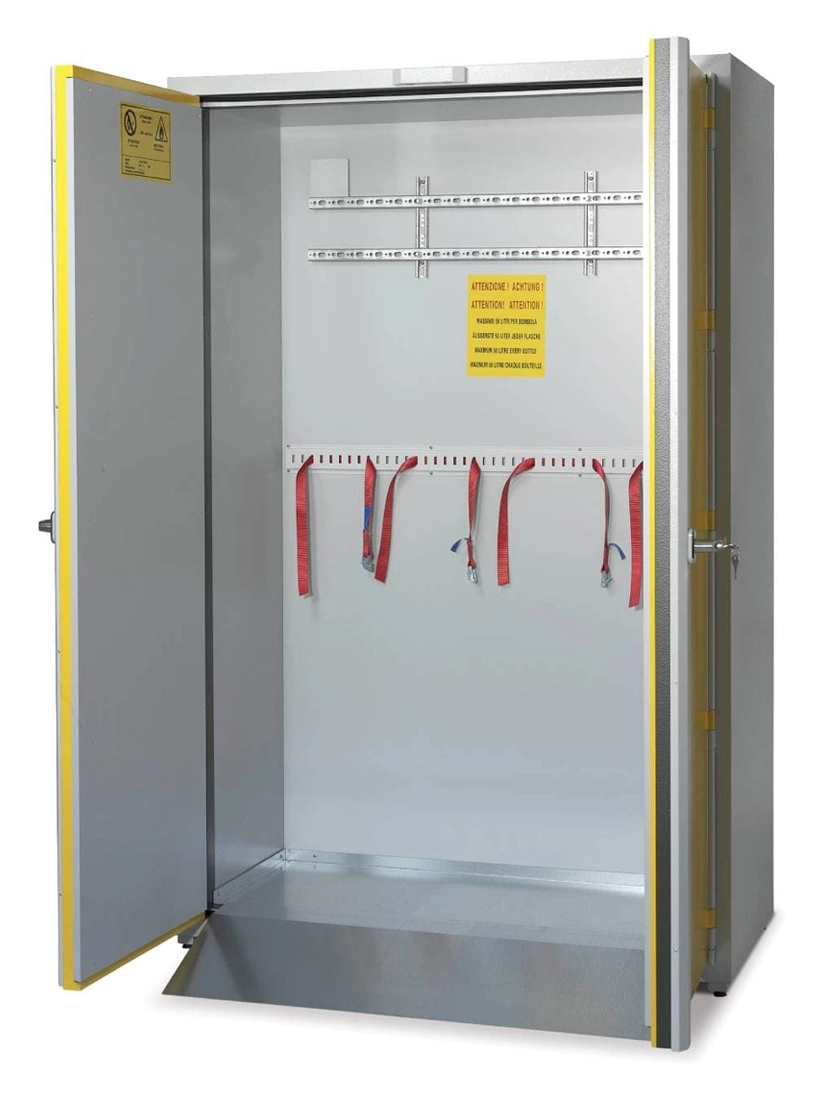

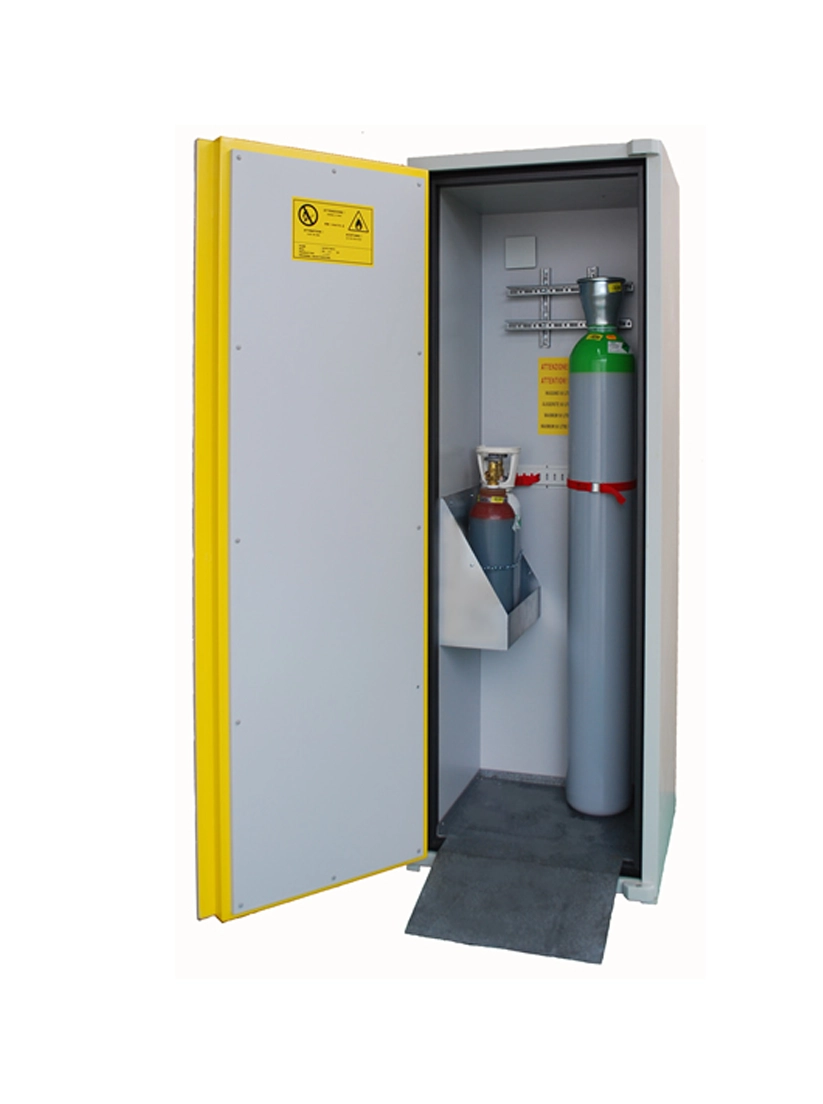

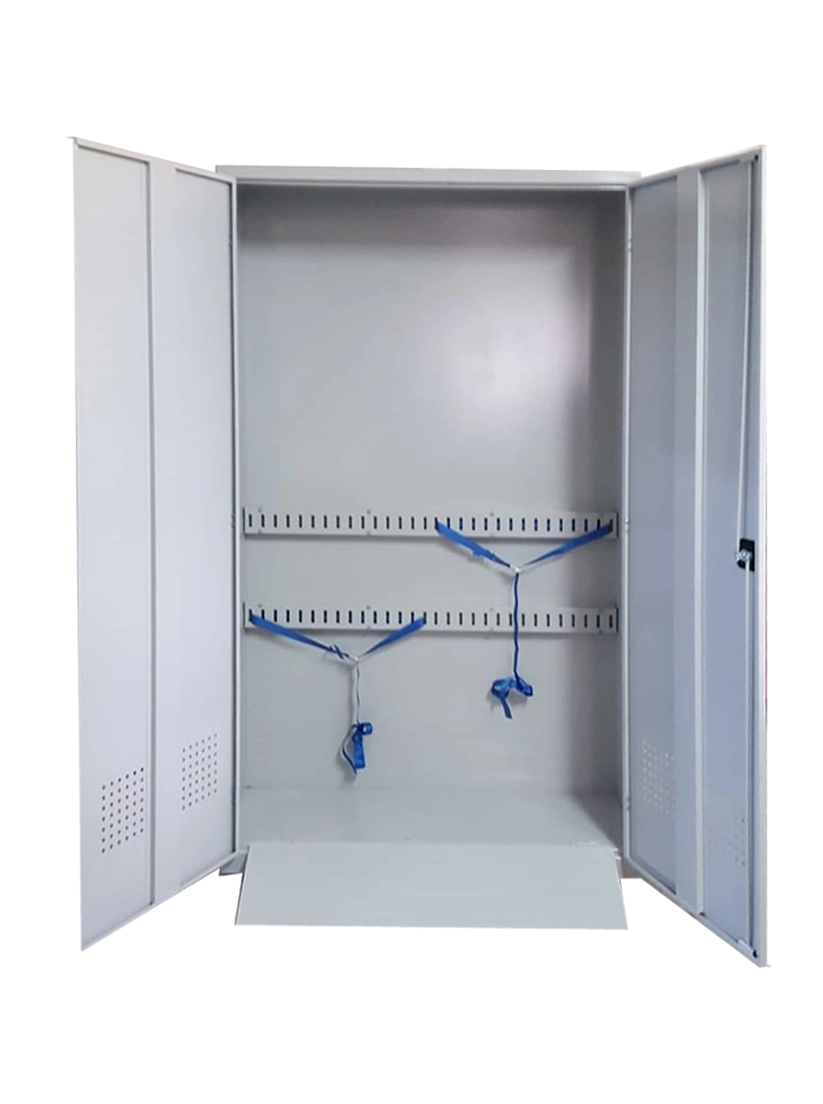

Cylinder Cabinets
In gas cylinder cabinets, the cabinet body and doors are manufactured from galvanized sheet metal in thicknesses (0.80 / 0.90 / 1.0 / 1.2 / 1.5 mm, etc.) suitable for the working environment. To prevent bending and ensure greater durability, the cabinet and its doors are produced with a double-wall design, with a steel reinforcement placed between the two walls.
The gas cylinder cabinet is coated with an epoxy-based electrostatic powder paint with a thickness of 60 microns and baked at 200°C.
Chains and mounting brackets are provided to secure the gas cylinders inside the system. The cabinet is equipped with an imported polypropylene duct-type fan motor that is resistant to gas exposure, operates quietly, has a minimum flow rate of 350 m³/h, and is resistant to acids and bases, as well as being antibacterial.
